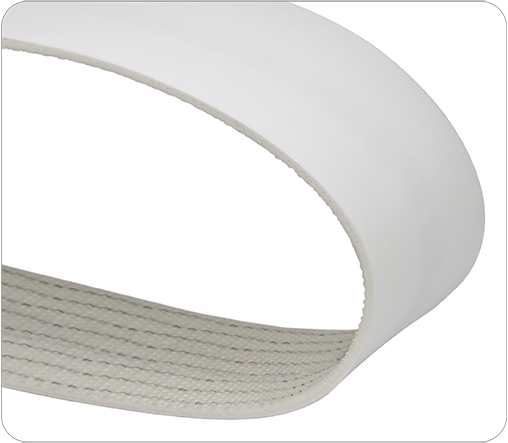

2 ply white TPU Knife edge
 |
Pure 10DESCRIPTION |
| TECHNICAL INFORMATION Max Production Width 118.11 in | 3000.00 mm Total Thickness 0.05 in | 1.20 mm Mass 0.23 lb/ft2 | 1.10 kg/m2 Tensile force at 1% elongation 34.20 lbf/in | 6.00 N/mm Working Temp. -4/+194 F | -20/+90 C Flexion (A) 0.20 in | 5.00 mm Counter Flexion (B) 1.18 in | 30.00 mm Coefficient of friction (Bottom side – Steel) 0.20 |
|
|
|

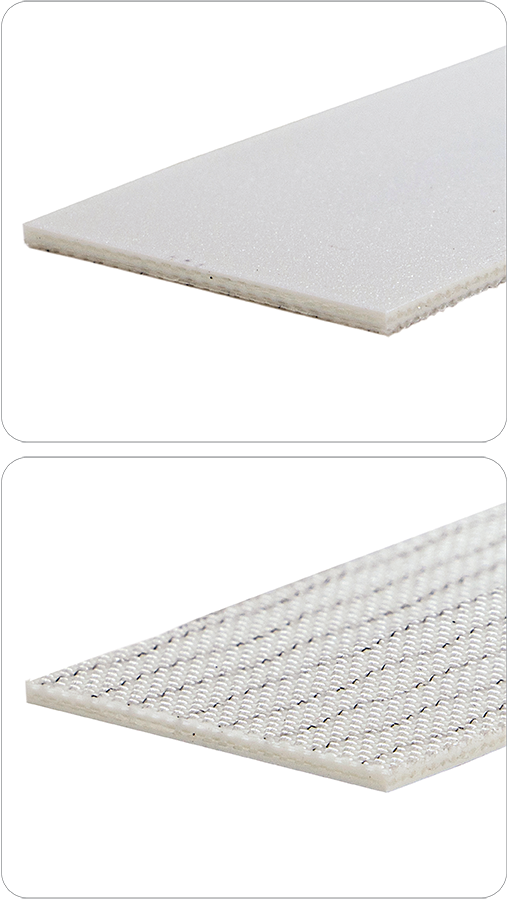

TOP SIDE (CARRYING)
TENSION MEMBER
BOTTOM SIDE (PULLEY) |
