2-ply clear TPU
 |

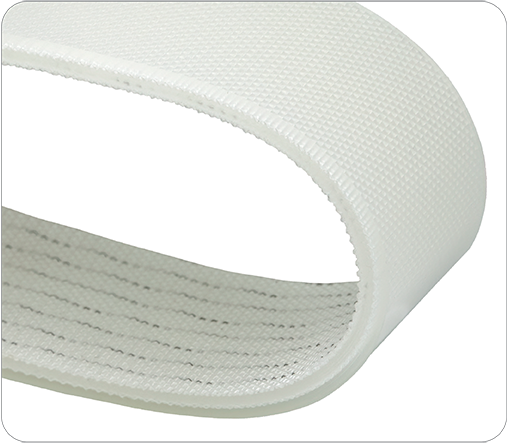

Pure 20B Clear GlossyDESCRIPTION |
| TECHNICAL INFORMATION Max Production Width 118.11 in | 3000.00 mm Total Thickness 0.16 in | 4.00 mm Mass 0.94 lb/ft2 | 4.60 kg/m2 Tensile force at 1% elongation 45.60 lbf/in | 8.00 N/mm Working Temp. -4/+194 F | -20/+90 C Flexion (A) 3.94 in | 100.00 mm Counter Flexion (B) 5.51 in | 140.00 mm Coefficient of friction (Bottom side – Steel) 0.20 |
|
 |

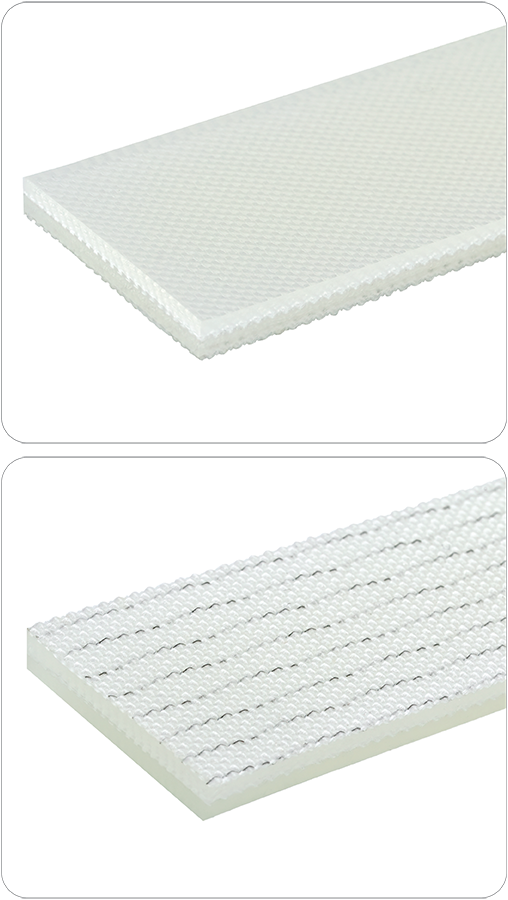

TOP SIDE (CARRYING)
TENSION MEMBER
BOTTOM SIDE (PULLEY) |
